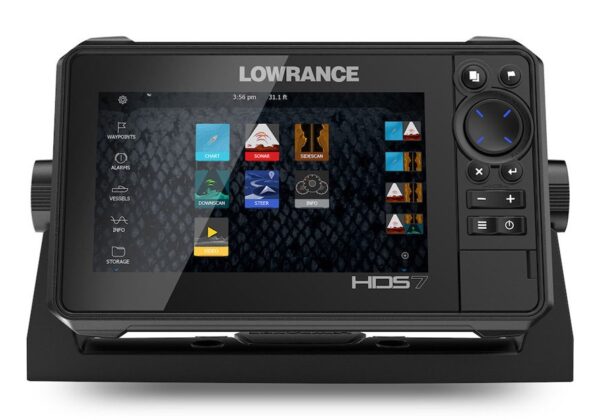

Lowrance HDS-7 LIVE

Backlight ColorPure White LED

Display Resolution1024 x 600

Screen Brightness>1200 Nits

Viewing Angles80° top/bottom, 80° left/right

BluetoothIntegrated Bluetooth 4.0 with support for Bluetooth Classic

Ethernet Ports1x 100 Mbit, 6 max MFD’s on a network

Connectivity Wi FiInternal 802.11b/g/n and Compatible with WiFi-1 Module

N2K PG NsReceive only 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List – WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration

NMEA 0183 Sentences supportedTX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.

NMEA 2000 Connectivity1x Micro-C

PC ConnectivityNone

SD Card Storage2 micro SD cards up to 32GB

VideoOutput: No Input: Composite video RCA – single channel via optional adaptor

Manouevres Turn PatternsCourse, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S

Steering ModesCourse, Heading, Waypoint, Power Steer

Approvals ComplianceFCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Power Consumption max2.4A @ 13VDC with Full Backlight, Sonar on

Power Consumption min1.7A @ 13VDC with Full Backlight, Sonar on

Power Consumption typical1.7A @ 13VDC with Full Backlight, Sonar on

Recommended Fuse Rating5A

Supply Voltage12 v DC (10.8-17VDC)

Humidity60°C, 95% relative humidity (RH) for 18 hours

Operating Temperature Range5°F to 131°F (-15°C to 55°C )

Shock Vibration100,000 cycles of 20 G

Storage Temperature Range4°F to 140°F (-20°C to 60°C )

WaterproofratingIPX7 with card door closed

CorrectionDGPS, WAAS

GPS Receiver Channels16

Position Accuracy20m RMS

Time to First Fix30s

Update rate10 Hz

AISAIS Chart and Radar overlay. Target vessel details.

AutopilotOutboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway

Cartography includedC-MAP US Enhanced Basemap (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)

Digital SwitchingCzone, Naviop

GPS10 Hz GPS/GLONASS WAAS/EGNOS/MSAS

Internal Storage8.0 GB Internal

MultimediaSonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products

Sonar CompatibilityIntegrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D

Waypoints, Routes, Tracks3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail

WeatherSiriusXM via WM-3 (USA only)

Compass Safe12″ (300mm)

Dimensions W x H x D9.21in (234.01mm) x 5.73in (145.6mm) x 3.06in (77.7mm)

Mounting TypeGimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount

Weight3.04lb (1.38kg)

InterfaceTouchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light

LanguagesLanguage on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

Warranty Period2 Year + 3 additional years of upgrade options totaling 5 years
