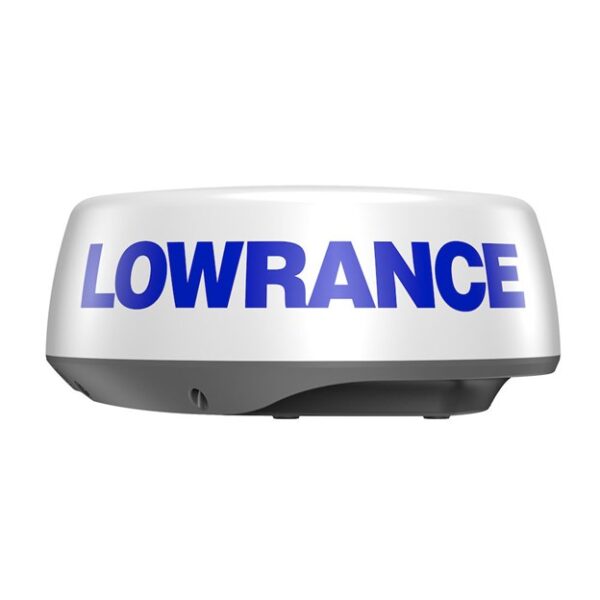

Lowrance HALO20+ Radar

Share this product


Get an almost real-time view with HALO20+. Industry-leading 60 RPM operation at close range provides the best in collision avoidance. Identify hazards instantly with VelocityTrack™ Doppler technology, and enjoy both short and long-range coverage—up to 36 nautical miles—from a compact 20-inch dome antenna.

Humidity95% RH at 35°C (95°F)
Operating Temperature Range-25° to + 55°C (-13° to +130°F)
Dimensions W x H x D510mm dia x 223 mm H. (20″ dia x 8.8″ H)
Weight5.9 kg (13 lbs) without cable
Beam width4.9° H nominal (-3dB) 2.5° with target separation on high x 25° V
Max Range, scale36 NM
Max Wind Speed100 knots (51 m/s)
Min Range, scale50 m / 200 ft / 50 yd
Radar ModesHarbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion
Radar TechnologyPulse Compression
Rotation speedUp to 60 RPM (Range Dependent)
InterfaceLowrance MFD
Warranty Period2 Years
