Description

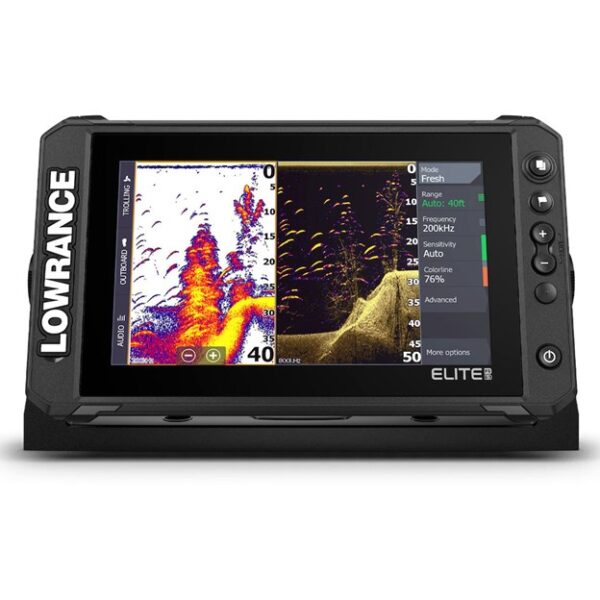

The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ live sonar, Active Imaging™ and preloaded C-MAP® Contour™+ charts – to help you make the most of your time on the water.
Specifications
Display
Backlight ColorPure White LED
Display Resolution800x480
Screen Brightness>1200 nits
Viewing Angles50° top 60°bottom 70° left/right
Connectivity
BluetoothIntegrated Bluetooth 4.0 with support for Bluetooth Classic
Ethernet Ports1 x 100Mbit
Connectivity Wi FiInternal 802.11b/g/n
N2K PG NsReceive only 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP Voltage Transmit and Receive: 59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List – WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event Reply Transmit only 65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183 Sentences supportedNone
NMEA 2000 Connectivity1x Micro-C
PC ConnectivityNone
SD Card Storage1 micro SD card up to 32GB
VideoNone
Electrical
Power Consumption max2.0A @ 13VDC with backlight on full
Power Consumption min2.0A @ 13VDC with backlight on full
Power Consumption typical2.0A @ 13VDC with backlight on full
Recommended Fuse Rating3A
Supply Voltage12v DC (10.8-17VDC)
Environment
Humidity60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Shock Vibration100,000 cycles of 20 G
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
WaterproofratingIPX7 with card door closed
GPS
CorrectionDGPS WAAS MSAS EGNOS GLONASS
GPS Receiver Channels16
Position Accuracy20m RMS
Time to First Fix30s
Update rate10 Hz
MFD
AISAIS Chart overlay. Target vessel details.
AutopilotOutboard Pilot Ghost Trolling Motor MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway
Cartography includedC-MAP Contour + (US models) Navionics basemap (AMER, AUS/NZ and ROW models)
Digital SwitchingNone
GPS10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Internal StorageNone
MultimediaSonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Aduio products
Sonar CompatibilityIntegrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructurreScan 3D LiveSight Active Target
Waypoints, Routes, Tracks3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail
WeatherSiriusXM via WM-4 (USA only)
Physical
Compass Safe12″ (300mm)
Mounting TypeGimbal Bracket or Dash Flush Mount
Weight2.7 lbs (1.2 kg)
Other
InterfaceMulti-Touch Touchscreen Zoom +/- MOB = (+/- combined) Pages Waypoint Light/Power
